| ACCESSORIES |
| Our Products |
|
| High gloss aluminium low luminance louvre |
| Code |
Version |
|
|
| A200K0565KI |
14/24W |
|
|
|
| A200K1165KI |
28/54W |
|
|
|
| A200K1465KI |
35/49/80W |
|
|
|
| n°1 for single lamp
n°2 for double-lamp |
|
|
|
| Opal diffuser with lateral covers in gloss aluminium |
| Code |
Version |
|
|
| A200K0565KL |
14/24W |
|
|
|
| A200K1165KL |
28/54W |
|
|
|
| A200K1465KL |
35/49/80W |
|
|
|
| n°1 for single lamp
n°2 for double-lamp |
|
|
|
| Closed opal diffuser |
| Code |
Version |
|
|
| A200K0569KO |
14/24W |
|
|
|
| A200K1169KO |
28/54W |
|
|
|
| A200K1469KO |
35/49/80W |
|
|
|
| n°1 for single-lamp
n°2 for double-lamp |
|
|
|
| Two closing caps |
| Code |
|
| A200K1001 GK•BK•NK |
|
|
| Two closing caps for single-lamp unit. (2 pz.) |
|
|
|

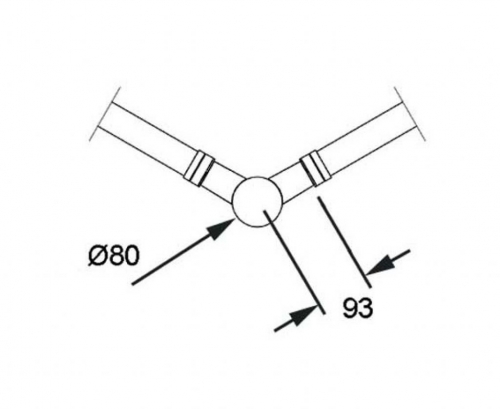

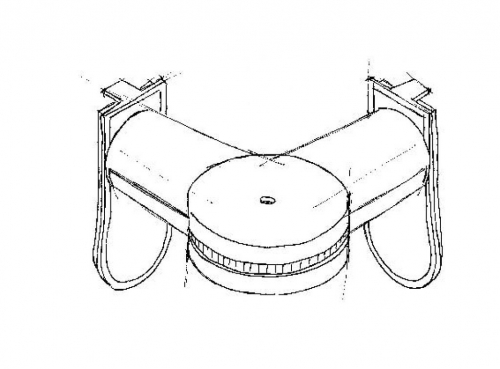

| Angle joint for two single-lamp |
| Code |
|
| A200K1002 GK•BK•NK |
|
|
| Angle joint for two single-lamp units (minimun angle 75°) provided with closing caps and rapid connectors. |
|
|
|
| Spacer single-lamp |
| Code |
|
| A200K1004 GK•BK•NK |
|
|
| Spacer with single-lamp closing cap, for
multiple angular junctions toghether with
art. A200K1002GK, provided with rapid
connectors. |
|
|
|
| Two closing caps |
| Code |
|
| A200K2001 GK•BK•NK |
|
|
| Two closing caps for double-lamp unit. (2 pz.)
|
|
|
|
| Angle joint for two double-lamp |
| Code |
|
| A200K2002 GK•BK•NK |
|
|
| Angle joint for two double-lamp units (minimun angle 75°) provided with closing caps and rapid connectors. |
|
|
|
| Spacer with double-lamp |
| Code |
|
| A200K2004 GK•BK•NK |
|
|
| Spacer with double-lamp closing cap, for
multiple angular junctions toghether with
art. A200K2002GK, provided with rapid
connectors. |
|
|
|
| Brackets for wall mounting |
| Code |
Lamps Watt |
|
|
| A200K2010K GK•BK•NK |
|
|
|
|
| Two brackets in polycarbonate for wall mounting for double-lamp unit. |
|
|
|
| Suspension for single and double-lamp. |
| Code |
L mm |
|
|
| A200K0001KK |
1200 |
|
|
|
| A200K0003KK |
3000 |
|
|
|
| Complete set of accessories for suspended installation; 2 steel wires; 2
steel cilinders for ceiling fixing; 2 wire-lock clamps for milimeter adjustment
of heigt; 2 steel hooks. |
|
|
|
| Cable suspension for single and double-lamp. |
| Code |
Cavo alimen. |
|
L mm |
|
|
| A1041 BI•GR |
3x1,5 |
|
1200 |
|
|
| Colours | | BI |  | GR |  |
|
| A1041 2A BI•GR |
4x1,5 |
|
1200 |
|
|
| Colours | | BI | | GR | |
|
| A1041 3A BI•GR |
5x1,5 |
|
1200 |
|
|
| Colours | | BI | | GR | |
|
| A1041/M3 BI•GR |
3x1,5 |
|
3000 |
|
|
| Colours | | BI | | GR | |
|
| A1041/M3 2A BI•GR |
4x1,5 |
|
3000 |
|
|
| Colours | | BI | | GR | |
|
| A1041/M3 3A BI•GR |
5x1,5 |
|
3000 |
|
|
| Colours | | BI | | GR | |
|
| Complete set of accessories for power supply:1 bracket; 1 power cord
with clamp; 1 white ABS ceiling wire cover rosette (grey GR on request). |
|
|
|
| Accessory for ceiling fixing (not for wall fixing). |
| Code |
|
| A200K0006KK |
|
|
| Complete set of accessories for ceiling fixing (for single or double lamp). |
|
|
|
| Electrified track adapters. |
| Code |
|
| A006 GR•BI |
|
| Colours | | GR | | BI | |
|
| A006 2A BI•GR |
|
| Colours | | BI | | GR | |
|
| 2 Eurostandard 3-phase track system adapters for single or double lamp. “2A” version is for special electrical installations. |
|
|
|
|
|
 |
|
|
|
|
|
|
|
