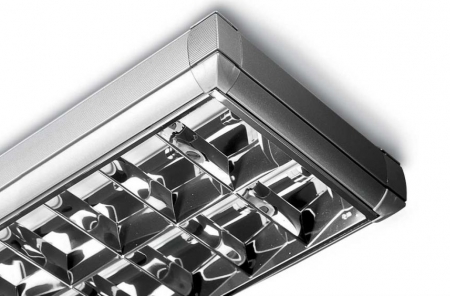

Double lamp light fitting direct/indirect light for T8 lamps, mat dark light louvre.

eulumdat

print

send

Our Products

Code Lamps Watt   L mm   high gloss low luminance louvre
A9791 BI•GR 2x58   1595
A9793 BI•GR 2x36   1295
Photometry
A9795 BI•GR 2x18   685




Code Lamps Watt   L mm   Matt low luminance louvre
A9711 BI•GR 2x58   1595
A9713 BI•GR 2x36   1295
Photometry
A9715 BI•GR 2x18   685


Louvre low luminance high gloss or matt parabolic louvre in aluminium 99,9% anodized with transverse parabolic blades completely closed in the upper part. Very high performance, antiridescent, luminance <200 cd/m2 for angles >65° transversal and longitudinal (EN 12464-1).
Colours
BI
GR
Other versions available for all powers
A_____/Eone lamp emergency continuous light with magnetic ballast
EL______220-240V 50/60Hz electronic ballast
EL____/Eone lamp emergency continuous light with electronic ballast
ED______220-240V 50/60Hz electronic dimmable ballast
ED_____/Eone lamp emergency continuous light with dimmable ballast
