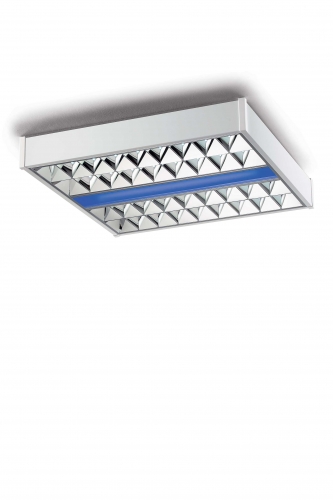

“CEILING MAGIC” is a new series of ceiling light fittings born to satisfy various requirements
as mixed light (direct/indirect), direct or indirect light, low luminance louver and the possibility of auxiliary or emergency lamps.
The use of the new T5 electronic lamp gives very high efficiency and high quality.
Materials
Body in white zinc coated steel with polycarbonate angular trimmings same colour of the body.
Louvres or diffusers direct light or direct/indirect light (see following pages).
Fluorescent lamps are not included.
Wiring
Wiring with electronic ballast 220-240V 50/60Hz for T5 fluorescent lamps (see following pages).
Wiring on request with dimmable ballast and/or with emergency light.
In accordance with standard IEC 598, CEI EN 60598-1 (CEI 34-21).
Emergency wiring in accordance with standard CEI EN 60598-2-22 (CEI 34-22).
Electronic wiring n.1
Wiring one electronic ballast 220/240V-50/60Hz electrical components with ENEC approval for high efficiency (28W) or high output (54W) T5 lamps. Rigid cable H05V2-U section 0,75 mm² (CEI 20-20).
Socket terminal 2P+T (section max 2,5 mm²).
Electronic wiring n.2
Wiring one electronic ballast 220/240V-50/60Hz electrical components with ENEC approval for high efficiency (28W) or high output (54W) T5 lamps. Rigid cable H05V2-U section 0,75 mm² (CEI 20-20).
Socket terminal 2P+T (section max 2,5 mm²).
Electronic wiring n.3
Wiring electronic 220/240V-50/60Hz electrical components with ENEC approval for high efficiency (14W) or high output (24W) T5 lamps.
Rigid cable H05V2-U section 0,75 mm² (CEI 20-20).
Version 4x14W is wired with one ballast and socket terminal 2P+T (section max 2,5 mm²), version 4x24W is double switch wired with two ballasts and socket terminal 3P+T, or also single switch.
Electronic wiring n.4
Wiring electronic 220/240V-50/60Hz electrical components with ENEC approval for high efficiency (14W) or high output (24W) T5 lamps. Rigid cable H05V2-U section 0,75 mm² (CEI 20-20).
Version 5x14W is wired with two ballasts and socket terminal 3P+T (section max 2,5 mm²), version 5x24W is triple switch wired with three ballasts and socket terminal 4P+T, or also double switch.
|
|
|
|
|
|
|
