Indoor or outdoor light fittings IP65 |
 |
|
|
| Our Products |
|
|
|

|
|

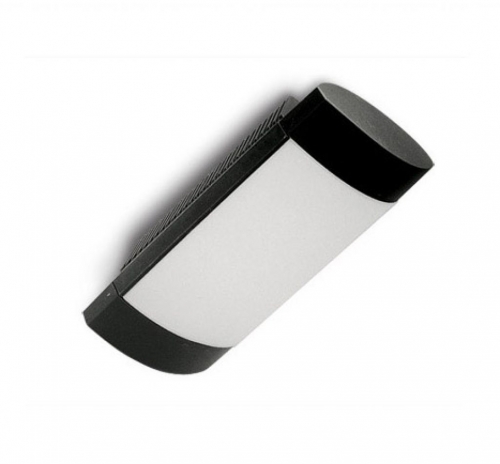

Body in white, black or grey thermoplastic material provided with sealing rubber and duct for cable passage Ø 8 mm. Socket terminal 2P+T (section max 2,5 mm²).
Reflector in white zinc coated steel. Wiring tray.
Diffuser glazed metacrylate fixed on the body with inoxidizable screws.
Ending parts in thermoplastic material (same colours of the base).
Starter Wiring 230V-50Hz, electrical components with ENEC approval. Rigid cable H05V2-U section 0,75 mm² (CEI 20-20).
Installations: ceiling or wall fixing (also inclined up or down at 45°); on the pole Ø 60 mm vertically with accessory A550 or in a horizontal position (inclined at 45°) with accessories A550 and A551.
Accessories provided screws and fastening nogs.
Accessories on request: pole Ø 60 mm A580 or A581 and base for pole A560.
In accordance with standard IEC 598, CEI EN 60598-1 (CEI 34-21).
Emergency wiring in accordance with standard CEI EN 60598-2-22 (CEI 34-22). |
 |
|
|
|
|
|
|
|
|
|
|
|
|
